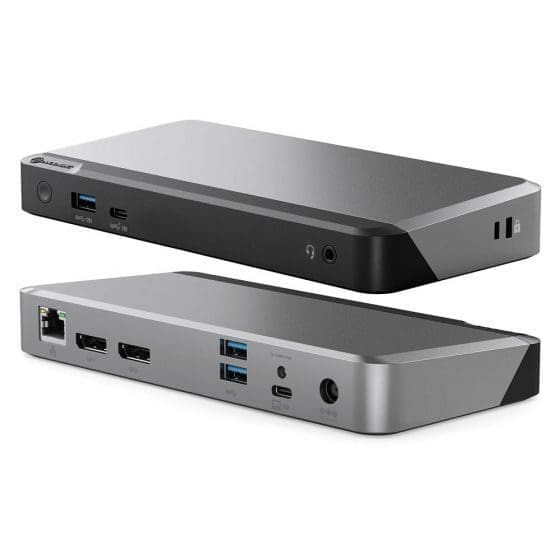

ALOGIC DX3 Triple 4K Display Universal Docking Station
18 in stock (can be backordered)
Call Us Today! 0203 617 7663 | info@miragetek.co.uk
18 in stock (can be backordered)
In stock
50 available
In stock
24 available
In stock
44 available
In stock
177 available
Designed to expand the capabilities of any laptop. Engineered for compatibility across all Windows, MacOS and ChromeOS laptops, the DX3 dock provides access to all of the ports required in a home office, education, or corporate environment.
IMMERSIVE TRIPLE 4K
Sometimes you need more screen real estate. The DX3 can connect up to three external displays at 4K resolutions through its triple DisplayPort outputs*
Whether you need to view big spreadsheets on multiple screens, compare designs, enter data or more, the DX3 is the perfect way to see more work on your screen, and do more work on your screen.
*The available resolution of the third video output depends on the capabilities of the computer used with the docking station. Refer to the Display Resolution Table below for details on the output capabilities of computers based on their specifications.
SMALL DESK FOOTPRINT. BIG PERFORMANCE
The DX3’s compact design occupies minimal desk space to deliver premium performance. It’s the ideal dock for a distraction-free desk set up focused on productivity.
USB-C & USB-A LAPTOP COMPATIBLE
IT decision-makers and organisations have more options with the DX3. It supports USB-C and USB-A laptop deployment.
LED Power Light
Lock Slot
VESA Mount
DUAL/TRIPLE DISPLAY ON M1 MAC
M1 Mac users can work on up to three screens when they plug into the DX3.
MADE WITH DISPLAYLINK
The DX3’s DisplayLink technology boosts your connectivity, power and productivity at work.
Feature | Feature Value |
---|---|
Connectivity technology | Wired |
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
Headphone outputs | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB Power Delivery | Y |
USB Power Delivery up to | 100 W |
DisplayPorts quantity | 3 |
DisplayPort version | 1.4 |
Combo headphone/mic port | Y |
Headphone connectivity | 3.5 mm |
USB Sleep-and-Charge | Y |
DC-in jack | Y |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 1000 Mbit/s |
Product colour | Black, Grey |
Card reader integrated | Y |
Compatible memory cards | MicroSD (TransFlash), SD |
Maximum digital resolution | 5120 x 2880 pixels |
Number of displays supported | 3 |
Cable lock slot | Y |
On/off switch | Y |
Display modes | Extended, Mirror |
LED indicators | Y |
Plug and Play | Y |
Charging function | Y |
Housing material | Acrylonitrile butadiene styrene (ABS) |
Certification | FCC |
Power source type | AC |
Power supply | 135 W |
Compatible power plug types | AU, EU, UK, US |
Windows operating systems supported | Y |
Mac operating systems supported | Y |
Sustainability certificates | RoHS, CE |
Width | 190 mm |
Depth | 90 mm |
Height | 6.5 mm |
Weight | 535 g |
Quantity per pack | 1 pc(s) |
Cables included | AC, USB Type-C |
AC adapter included | Y |
Manual | Y |
Interface adapters included | USB Type-C male – USB Type-A female |
Harmonized System (HS) code | 84733020 |
Connectivity technology | Wired |
---|---|
USB Power Delivery up to | 100 W |
DisplayPort version | 1.4 |
Headphone connectivity | 3.5 mm |
DC-in jack | Y |
Ethernet LAN (RJ-45) ports | 1 |
Product colour | Black, Grey |
Compatible memory cards | MicroSD (TransFlash), SD |
On/off switch | Y |
LED indicators | Y |
Charging function | Y |
Certification | FCC |
Power supply | 135 W |
Sustainability certificates | RoHS, CE |
Depth | 90 mm |
Weight | 535 g |
Cables included | AC, USB Type-C |
Manual | Y |
Harmonized System (HS) code | 84733020 |
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Headphone outputs | 1 |
USB Power Delivery | Y |
DisplayPorts quantity | 3 |
Combo headphone/mic port | Y |
USB Sleep-and-Charge | Y |
Ethernet LAN | Y |
Ethernet LAN data rates | 1000 Mbit/s |
Card reader integrated | Y |
Maximum digital resolution | 5120 x 2880 pixels |
Cable lock slot | Y |
Display modes | Extended, Mirror |
Plug and Play | Y |
Housing material | Acrylonitrile butadiene styrene (ABS) |
Power source type | AC |
Compatible power plug types | AU, EU, UK, US |
Width | 190 mm |
Height | 6.5 mm |
Quantity per pack | 1 pc(s) |
AC adapter included | Y |
Interface adapters included | USB Type-C male – USB Type-A female |
